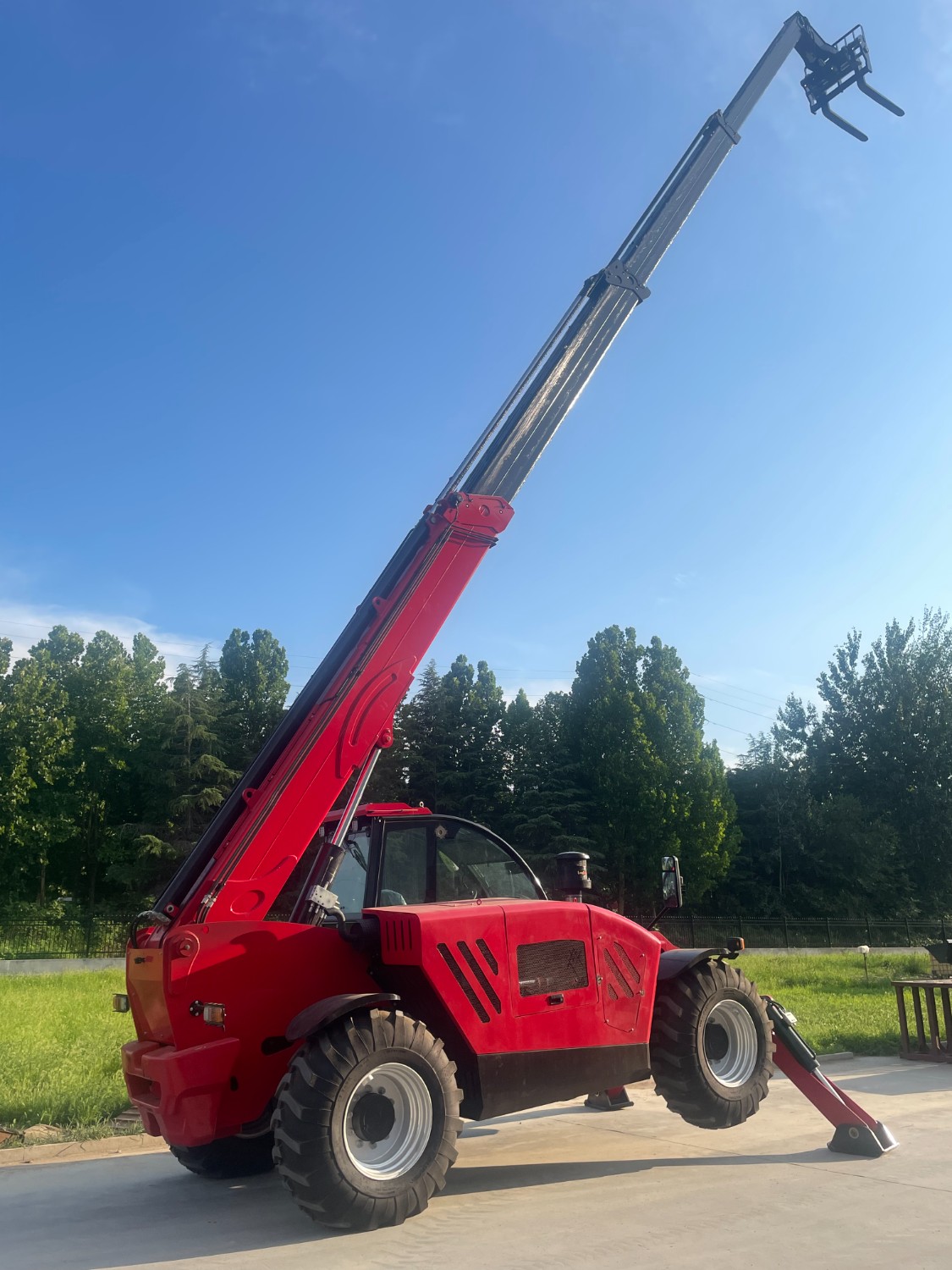

4018靜液壓叉裝車

總尺寸Overall Dimension

1 整機總長（鏟斗放置地面）Length(with bucket on ground) 7900±50mm

2 整機總長（貨叉放置地面）Length（Forks are placed on the ground） 7500±50mm

3 整機長度（不帶貨叉不帶斗）Length（No forks, no buckets） 6300±50mm

4 整機總寬(輪胎外沿、機罩外沿)Overall width（Tire outer edge, hood outer edge) 2420±50mm

5 整機總寬（液壓支腿完全打開）The overall width of the whole machine (the hydraulic outriggers are fully open) 3800±50mm

6 整機高度（到駕駛室頂）Height(To the top of the cabin) 2810±20mm

7 軸距Wheel base(MM) 3300±10mm

8 輪距 Wheel Tread(MM) 1980±10mm

主要技術參數 Main technical parameters

1 額定載重量Rated load 4000KG

2 操作重量 Operating weight 13000KG

5 動作時間Actuation time 舉升時間  空載

Lifting time Empty/full load 18S

下降時間 Falling time 12.7S

外伸時間Extension time 16.1S

回縮時間Retraction time 15.6S

上傾翻時間Up-tilting time 5S

下傾翻時間Down-tipping time 4S

發動機 Engine

1 發動機型號Engine model 康明斯國三QSF3.8-C140

2 冷卻形式Cooling type 水冷Water cooling

3 額定功率 Rated power 104(kW)

4 排氣量Total exhaust of cylinder 3.8L

5 額定轉速Rated speed 2200(r/min)

傳動系統 Transmission System

1 變速箱Transmission case 冷卻方式Cooling type 壓力油循環Pressure oil circulating

型號Model CA587914S

形式Type 靜液壓

2 橋Axle 前驅動橋型號Front Axle Model 卡拉羅CA599663S

后驅動橋型號Rear Axle Model 卡拉羅CA599664S

3 變速箱檔位 Gear shift position 2F、 2R前二后二檔位

4 速度Speed（F/R）km/h 前進1檔  F1:  11km/h

     前進2檔  F2:  30km/h

后退1檔  R1:  11km/h

后退2檔  R2:  30km/h

5 行車制動 油浸多盤式液壓制動[濕式制動]

6 駐車制動 彈簧制動液壓釋放

7 輪胎型號Tire size    440/80-24

液壓系統 Hydraulic system

1 工作泵排量Working pump displacement 變量柱塞泵63cc/rev

2 工作泵壓力Working pump pressure 265bar

3 行走泵 變量柱塞泵75cc/rev

4 行走泵壓力 400bar

3 轉向器型號 Steering gear model BZZ-250

4 轉向模式 前輪；四輪；蟹型
